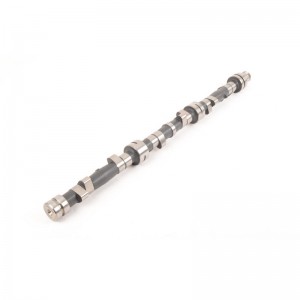

This image is generic/non-specific
Click to Enlarge

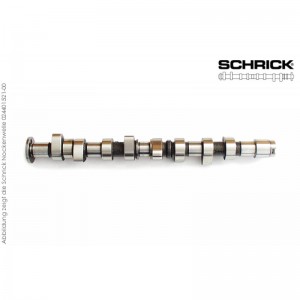

Ref: 000201840-02
For Clockwise distributor, -09/1980

284/284/110 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Stroke data [mm] Cam lift inlet 7.2, Cam lift outlet 7.2, Valve lift inlet 9.5, Valve lift outlet 9.5
Opening angle [° Kw] Opening angle inlet 284, Opening angle outlet 284, intake spread 110, exhaust spread 110
Timing [° Kw] Inlet opens 32, Inlet closes 72, Outlet opens 72, Outlet closes 32
Stroke in TDC [mm] Valve lift inlet in TDC 2.0, Valve lift outlet in TDC 2.0
Valve clearance [mm] Valve clearance inlet 0.2, Valve clearance outlet 0.2

Optional Accessories, please enquire for prices
- valve springs 005602062
- valve springs 005602022
- cam follower 000213068-01

We recommend always replacing the cam followers when mounting a new camshaft.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !
Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 000201840-01
For For Clockwise distributor engines up to 09 / 1980

284/284/110 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Stroke data [mm]: Cam lift inlet 7.2, Cam lift outlet 7.2, Valve lift inlet 9.5, Valve lift outlet 9.5
Opening angle [° Kw]: Opening angle inlet 284, Opening angle outlet 284, intake spread 110, exhaust spread 110
Timing [° Kw]: Inlet opens 32, Inlet closes 72, Outlet opens 72, Outlet closes 32
Stroke in TDC [mm]: Valve lift inlet in TDC 2.0, Valve lift outlet in TDC 2.0
Valve clearance [mm] Valve clearance inlet 0.2, Valve clearance outlet 0.2

**Optional accessories, please enquire for prices :
- valve springs 000202090
- cam follower 000213068-01

Additional Information: - clockwise distributor (-9/1980)

We recommend always replacing the cam followers when mounting a new camshaft.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 000201920-01
For Clockwise distributor engines, up to 09 / 1980

292/292/110 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Stroke data [mm] Cam lift inlet 7.6, Cam lift outlet 7.6, Valve lift inlet 10, Valve lift outlet 10
Opening angle [° Kw] Opening angle inlet 292, Opening angle outlet 292, intake spread 110, exhaust spread 110
Timing [° Kw] Inlet opens 36, Inlet closes 76, Outlet opens 76, Outlet closes 36
Stroke in TDC [mm] Valve lift inlet in TDC 2.6, Valve lift outlet in TDC 2.6
Valve clearance [mm] Valve clearance inlet 0.2, Valve clearance outlet 0.2

Optional accessories please enquire for prices
- valve springs 000202090
- cam follower 000213068-01

Additional Information: Clockwise distributor clockwise (-9/80)

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 000201920-02
for Anti Clockwise distributor engines 09 / 1980 - on

292/292/110 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Stroke data [mm] Cam lift inlet 7.6, Cam lift outlet 7.6, Valve lift inlet 10, Valve lift outlet 10
Opening angle [° Kw] Opening angle inlet 292, Opening angle outlet 292, intake spread 110, exhaust spread 110
Timing [° Kw] Inlet opens 36, Inlet closes 76, Outlet opens 76, Outlet closes 36
Stroke in TDC [mm] Valve lift inlet in TDC 2.6, Valve lift outlet in TDC 2.6
Valve clearance [mm] Valve clearance inlet 0.2, Valve clearance outlet 0.2

**Optional accessories please enquire for prices
- valve springs 005602062
- valve springs 005602022
- cam follower 000213068-01
Additional Information: anti-clockwise distributor (9 / 80-)

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 000201040-01
For Clockwise distributor engines, up to 09 / 1980
** Small slot must be bored in the middle bearing.

304/304/108 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Stroke data [mm] Cam lift inlet 8.2, Cam lift outlet 8.2, Valve lift inlet 10.7, Valve lift outlet 10.7
Opening angle [° Kw] Opening angle inlet 304, Opening angle outlet 304, intake spread 108, exhaust spread 108
Timing [° Kw] Inlet opens 44, Inlet closes 80, Outlet opens 80, Outlet closes 44
Stroke in TDC [mm] Valve lift inlet in TDC 2.9, Valve lift outlet in TDC 2.9
Valve clearance [mm] Valve clearance inlet 0.25, Valve clearance outlet 0.25

**Optional accessories please enquire for prices
- valve springs 000202090
- cam follower 000213068-01
Additional Information: Clockwise distributor (-9/80). A small slot must be bored in the middle bearing.

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 000201040-02
For Anti Clockwise distributor engines 09 / 1980 - on
** A small slot must be bored in the middle bearing

304/304/108 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 8,2, Cam lift exhaust [mm] 8,2, Valve lift intake [mm] 10.7, Valve lift exhaust [mm] 10.7
Opening Durations [°CrA] Opening duration [CrA°] 304, Peak timing intake [CrA°] 304, intake opens 108, Peak timing exhaust [CrA°] 108
Valve timing [°CrA] intake closes 44, exhaust opens 80, exhaust closes 80, Lift in TDC intake [mm] 44
Lift in TDC [mm] Valve clearance exhaust [mm] 2,9, Opening duration exhaust [CrA°] 2,9
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25, Valve clearance intake [mm] 0,25

** Optional accessories please enquire for prices
- Valve springs 005602062
- Valve springs 005602022
- Cam followers 000213068-01
Additional Information: Anti-clockwise distributor (-9/80). A small slot must be bored in the middle bearing.

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 000201160-03

Additional Information:
-First and second bearing 2mm larger in diameter,
clockwise distributor engines, up to 09 / 1980

316/316/100 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 9,1, Cam lift exhaust [mm] 9,1, Valve lift intake [mm] 11.9, Valve lift exhaust [mm] 11.9
Opening Durations [°CrA] Opening duration [CrA°] 316, Peak timing intake [CrA°] 316, intake opens 100, Peak timing exhaust [CrA°] 100
Valve timing [°CrA] intake closes 58, exhaust opens 78, exhaust closes 78, Lift in TDC intake [mm] 58
Lift in TDC [mm] Valve clearance exhaust [mm] 5,6, Opening duration exhaust [CrA°] 5,6
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25, Valve clearance intake [mm] 0,25

NOTE : The following accessories MUST be used with this camshaft, please enquire for prices
- Valve springs 000202080*
- Valve springs 000202043*
- Valve spring retainers upper 000213059*
- Valve keys key 0894138M8*
- Cam followers 000213068-01*

In most cases it is advisable to change cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 000201160-04
For Anti Clockwise distributor engines 09/1980- on
-First and second bearing 2mm larger in diameter

316/316/100 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 9,1, Cam lift exhaust [mm] 9,1, Valve lift intake [mm] 11.9, Valve lift exhaust [mm] 11.9
Opening Durations [°CrA] Opening duration [CrA°] 316, Peak timing intake [CrA°] 316, intake opens 100, Peak timing exhaust [CrA°] 100
Valve timing [°CrA] intake closes 58, exhaust opens 78, exhaust closes 78, Lift in TDC intake [mm] 58
Lift in TDC [mm] Valve clearance exhaust [mm] 5,6, Opening duration exhaust [CrA°] 5,6
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25, Valve clearance intake [mm] 0,25

**Required accessories, these MUST be used with this camshaft, please enquire for prices

- Valve springs 000202080*
- Valve springs 000202043*
- Valve spring retainers upper 000213059*
- Valve keys key 0894138M8*
- Cam followers 000213068-01*

Additional Information: First and second bearing 2mm larger in diameter, anti-clockwise distributor (9/80-)
In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 000201280-01
For Clockwise distributor engines up to 09 / 1980
-First and second bearing 2mm larger in diameter,

328/316/100 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 9,2, Cam lift exhaust [mm] 8,5, Valve lift intake [mm] 12, Valve lift exhaust [mm] 11.15
Opening Durations [°CrA] Opening duration [CrA°] 328, Peak timing intake [CrA°] 316, intake opens 100,
Peak timing exhaust [CrA°] 100
Valve timing [°CrA] intake closes 64, exhaust opens 84, exhaust closes 78, Lift in TDC intake [mm] 58
Lift in TDC [mm] Valve clearance exhaust [mm] 5,5, Opening duration exhaust [CrA°] 5,5
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25, Valve clearance intake [mm] 0,25

**Required accessories, these MUST be used with this camshaft, please enquire for prices

- Valve springs 000202080*
- Valve springs 000202043*
- Valve keys key 0894138M8*
- Valve spring retainers upper 000213059*
- Cam followers 000213068-01*

Additional Information: First and second bearing 2mm larger in diameter, clockwise distributor (-9/80)

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 00201360-01
For Clockwise distributor engines up to 09 / 1980
First and second bearing 2mm larger in diameter

336/328/100 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 9,5, Cam lift exhaust [mm] 9,2, Valve lift intake [mm] 12.4, Valve lift exhaust [mm] 12
Opening Durations [°CrA] Opening duration [CrA°] 336, Peak timing intake [CrA°] 328, intake opens 100,
Peak timing exhaust [CrA°] 100
Valve timing [°CrA] intake closes 68, exhaust opens 88, exhaust closes 84, Lift in TDC intake [mm] 64
Lift in TDC [mm] Valve clearance exhaust [mm] 5,9, Opening duration exhaust [CrA°] 5,9
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25, Valve clearance intake [mm] 0,25

**Required accessories, these MUST be used with this camshaft, please enquire for prices

- Valve springs 000202080*
- Valve springs 000202043*
- Valve keys key 0894138M8*
- Valve spring retainers upper 000213059*
- Cam followers 000213068-01*

Additional Information: First ans second bearing 2mm larger in diameter, clockwise distributor (-9/80)

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



Click to Enlarge

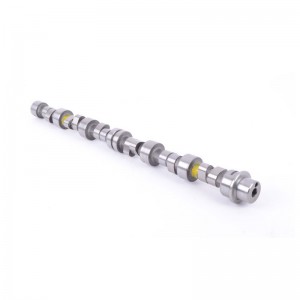

Ref: 005601880-00
M20 engines up to 1985

288/288/110 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 7,3, Cam lift exhaust [mm] 7,3, Valve lift intake [mm] 11.4, Valve lift exhaust [mm] 11.4
Opening Durations [°CrA] Opening duration [CrA°] 288, Peak timing intake [CrA°] 288, intake opens 110, Peak timing exhaust [CrA°] 110
Valve timing [°CrA] intake closes 34, exhaust opens 74, exhaust closes 74, Lift in TDC intake [mm] 34
Lift in TDC [mm] Valve clearance exhaust [mm] 2,8, Opening duration exhaust [CrA°] 2,8
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25, Valve clearance intake [mm] 0,25

Optional Accessories, please enquire for prices
- Valve springs 005602062
- Valve springs 005602022


In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



Click to Enlarge

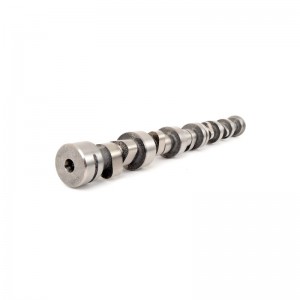

Ref: 005601720-00
M20 engines up to 1985

272/272/111 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 7,0, Cam lift exhaust [mm] 7,0, Valve lift intake [mm] 11,0, Valve lift exhaust [mm] 11,0
Opening Durations [°CrA] Opening duration [CrA°] 272, Peak timing intake [CrA°] 272, intake opens 111,
Peak timing exhaust [CrA°] 111
Valve timing [°CrA] intake closes 25, exhaust opens 67, exhaust closes 67, Lift in TDC intake [mm] 25
Lift in TDC [mm] Valve clearance exhaust [mm] 1,6, Opening duration exhaust [CrA°] 1,6
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25, Valve clearance intake [mm] 0,25

Optional accessories, please enquire for prices : -
- Valve springs 005602062
- Valve springs 005602022

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



Click to Enlarge

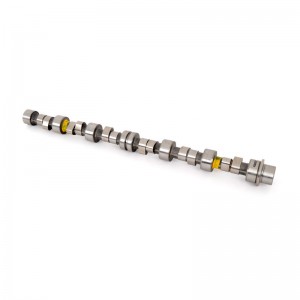

Ref: 005601840-00
M20 up to 1985

284/272/110 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 7,3, Cam lift exhaust [mm] 7,0, Valve lift intake [mm] 11,4, Valve lift exhaust [mm] 11,0
Opening Durations [°CrA] Opening duration [CrA°] 284, Peak timing intake [CrA°] 272, intake opens 110,
Peak timing exhaust [CrA°] 110
Valve timing [°CrA] intake closes 32, exhaust opens 72, exhaust closes 66, Lift in TDC intake [mm] 26
Lift in TDC [mm] Valve clearance exhaust [mm] 2,2, Opening duration exhaust [CrA°] 1,7
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25, Valve clearance intake [mm] 0,25

Optional accessories, please enquire for prices
- Valve springs 005602062
- Valve springs 005602022

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 005601040-00
M20 up to 1985

304/304/105 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 7,7, Cam lift exhaust [mm] 7,7, Valve lift intake [mm] 12.2, Valve lift exhaust [mm] 12.2
Opening Durations [°CrA] Opening duration [CrA°] 304, Peak timing intake [CrA°] 304, intake opens 105,
Peak timing exhaust [CrA°] 105
Valve timing [°CrA] intake closes 47, exhaust opens 77, exhaust closes 77, Lift in TDC intake [mm] 47
Lift in TDC [mm] Valve clearance exhaust [mm] 4,0, Opening duration exhaust [CrA°] 4,0
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25, Valve clearance intake [mm] 0,25

Optional accessories, please enquire for pricing :-
- Valve springs 000202090

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 002201820-00
Distributor drive, not for Motronic, without fuel pump drive.
282/282/110 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 8,4, Cam lift exhaust [mm] 8,4, Valve lift intake [mm] 10.6, Valve lift exhaust [mm] 10.6
Opening Durations [°CrA] Opening duration [CrA°] 282, Peak timing intake [CrA°] 282, intake opens 110, Peak timing exhaust [CrA°] 110
Valve timing [°CrA] intake closes 31, exhaust opens 71, exhaust closes 71, Lift in TDC intake [mm] 31
Lift in TDC [mm] Valve clearance exhaust [mm] 1,8, Opening duration exhaust [CrA°] 1,8
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25, Valve clearance intake [mm] 0,25

Optional accessories, please enquire for prices :-
-Valve springs 000202090

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



Click to Enlarge

Ref: 002201840-04 OR 002201840-01
NOTE : When ordering please state if your engine is
- Motronic 2 (09/83-), without fuel pump drive.
OR
- Motrinic 1 (-09/83 ) without fuel pump drive
284/280/110 (Opening duration/Peak timing intake/Peak timing exhaust)

***PLEASE STATE WHICH ABOVE OPTION YOU REQUIRE WHEN ORDERING

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 8,7, Cam lift exhaust [mm] 8,6, Valve lift intake [mm] 10.9, Valve lift exhaust [mm] 10.8
Opening Durations [°CrA] Opening duration [CrA°] 284, Peak timing intake [CrA°] 280, intake opens 110,
Peak timing exhaust [CrA°] 110
Valve timing [°CrA] intake closes 32, exhaust opens 72, exhaust closes 70, Lift in TDC intake [mm] 30
Lift in TDC [mm] Valve clearance exhaust [mm] 1,9, Opening duration exhaust [CrA°] 1,7
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25, Valve clearance intake [mm] 0,25

Optional Accessories, please enquire for prices :-
- valve springs 0002 02 090

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

_0256A1561-00
256/ 110 (Peak timing EXHAUST/Peak timing exhaust)
See other listing for the Intake camshaft please

Lift data [mm] Cam lift intake -, Cam lift exhaust [mm] 10,4, Valve lift intake [mm] -, Valve lift exhaust [mm] 10,4
Opening Durations [°CrA] Opening duration [CrA°] -, Peak timing intake [CrA°] 256, intake opens -, Peak timing exhaust [CrA°] 110
Valve timing [°CrA] intake closes -, exhaust opens -, exhaust closes 58, Lift in TDC intake [mm] 18
Lift in TDC [mm] Valve clearance exhaust [mm] -, Opening duration exhaust [CrA°] 1,2
Valve clearance [mm] Lift in TDC exhaust [mm] -, Valve clearance intake [mm] hydr.

NOTE : Optional accessories, please enquire for prices
- Valve springs 025602082
- Cam followers 086313804
- Camshaft gears 089900001
- Camshaft gears 089900002

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 10.00 Kg



This image is generic/non-specific
Click to Enlarge

REF : 0256E1561-00
256/ /110 (Opening duration/intake opens)

Lift data [mm] Cam lift intake 10,4, Cam lift exhaust [mm] -, Valve lift intake [mm] 10,4, Valve lift exhaust [mm] -
Opening Durations [°CrA] Opening duration [CrA°] 256, Peak timing intake [CrA°] -, intake opens 110, Peak timing exhaust [CrA°] -
Valve timing [°CrA] intake closes 18, exhaust opens 58, exhaust closes -, Lift in TDC intake [mm] -
Lift in TDC [mm] Valve clearance exhaust [mm] 1,2, Opening duration exhaust [CrA°] -
Valve clearance [mm] Lift in TDC exhaust [mm] hydr., Valve clearance intake [mm] -

NOTE: Optional accessories, please enquire for prices :-
- Valve springs 025602082
- Cam followers 086313804
- Camshaft gears 089900001
- Camshaft gears 089900002
Connected camshaft Camshafts 0256A1561-00
Additional Information: Made form billet steel

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 10.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 035301641-00

264/110 - /264/110 (Opening duration/Peak timing intake - Peak timing intake/Peak timing exhaust)

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Camshaft type: Camshaft for inlet and outlet
Duration °CRA Intake: 264
Duration °CRA Exhaust: 264
Intake Peak Timing: 110
Exhaust Peak Timing: 110
Cam Lift Inlet: 6.34
Cam Lift Exhaust: 6.34
Valve Lift Inlet: 11.1
Valve Lift Exhaust: 11.1
Valve Timing °CRA Intake open: 22
Valve Timing °CRA Intake close: 62
Valve Timing °CRA Exhaust open: 62
Valve Timing °CRA Exhaust close: 22
Lift at TDC Intake: 1.22
Lift at TDC Exhaust: 1.22
Valve clearance Intake: hydr.
Valve clearance Exhaust: hydr.

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 0227D1760-01

276/276/106 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 11,3, Cam lift exhaust [mm] 11,3, Valve lift intake [mm] 11,3, Valve lift exhaust [mm] 11,3
Opening Durations [°CrA] Opening duration [CrA°] 276, Peak timing intake [CrA°] 276, intake opens 106, Peak timing exhaust [CrA°] 106
Valve timing [°CrA] intake closes 32, exhaust opens 64, exhaust closes 64, Lift in TDC intake [mm] 32
Lift in TDC [mm] Valve clearance exhaust [mm] 3,2, Opening duration exhaust [CrA°] 3,2
Valve clearance [mm] Lift in TDC exhaust [mm] 0,35, Valve clearance intake [mm] 0,40

*** Optional accessories, please Enquire for prices :-
- Valve springs 001302064
- Valve springs 022002026
- Valve spring retainers 022713051
- Valve spring retainers 022713052
- Valve keys 0894138M7
- Camshaft gears 089900001
- Camshaft gears 089900002

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 0227D1840-00

284/284/106 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 11,5, Cam lift exhaust [mm] 11,5, Valve lift intake [mm] 11,5, Valve lift exhaust [mm] 11,5
Opening Durations [°CrA] Opening duration [CrA°] 284, Peak timing intake [CrA°] 284, intake opens 106,
Peak timing exhaust [CrA°] 106
Valve timing [°CrA] intake closes 36, exhaust opens 68, exhaust closes 68, Lift in TDC intake [mm] 36
Lift in TDC [mm] Valve clearance exhaust [mm] 3,5, Opening duration exhaust [CrA°] 3,5
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25, Valve clearance intake [mm] 0,30

*** Optional accessories, please Enquire us for prices
- Valve springs 001302064
- Valve springs 022002026
- Valve spring retainers 022713051
- Valve spring retainers 022713052
- Valve keys 0894138M7
- Camshaft gears 089900001
- Camshaft gears 089900002

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 0227D1920-05

292/292/102 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 12,0, Cam lift exhaust [mm] 12,0, Valve lift intake [mm] 12,0, Valve lift exhaust [mm] 12,0
Opening Durations [°CrA] Opening duration [CrA°] 292, Peak timing intake [CrA°] 292, intake opens 102, Peak timing exhaust [CrA°] 102
Valve timing [°CrA] intake closes 44, exhaust opens 68, exhaust closes 68, Lift in TDC intake [mm] 44
Lift in TDC [mm] Valve clearance exhaust [mm] 4,55, Opening duration exhaust [CrA°] 4,55
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25, Valve clearance intake [mm] 0,30

*** Optional accessories, please Enquire us for prices
- Valve springs 001302064
- Valve springs 022002026
- Valve spring retainers 022713051
- Valve spring retainers 022713052
- Valve keys 0894138M7
- Camshaft gears 089900001
- Camshaft gears 089900002

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 0227D1080-01

308/308/102 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 12,2, Cam lift exhaust [mm] 12,2, Valve lift intake [mm] 12,2, Valve lift exhaust [mm] 12,2
Opening Durations [°CrA] Opening duration [CrA°] 308, Peak timing intake [CrA°] 308, intake opens 102,
Peak timing exhaust [CrA°] 102°
Valve timing [°CrA] intake closes 52, exhaust opens 76, exhaust closes 76, Lift in TDC intake [mm] 52
Lift in TDC [mm] Valve clearance exhaust [mm] 5,5, Opening duration exhaust [CrA°] 5,5
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25, Valve clearance intake [mm] 0,3
Optional accessories
- Camshaft gears 089900001
- Camshaft gears 089900002

*** Required accessories, these items MUST be used with these camshafts, please Enquire for best prices :-

- Valve springs 022702113*
- Valves int. valve 022713053*, exh. valve 022713054
- Valve keys key 0894138L7*
- Valve spring retainers upper 022713055*
- Valve spring retainers lower 022713058*
- Cam followers tappet 022713805-2*
Connected camshaft Camshafts 0227D1920-05

Additional Information: Tappets 0227 13 805 necessary.

Accessory articles which are marked with an asterisk (*) must be used with this specification camshaft.
Those with no (*) are recommended by Schrick but are not mandatory.

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 0227D1200-02

320/320/102 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 13,0, Cam lift exhaust [mm] 13,0, Valve lift intake [mm] 13,0, Valve lift exhaust [mm] 13,0
Opening Durations [°CrA] Opening duration [CrA°] 320, Peak timing intake [CrA°] 320, intake opens 102,
Peak timing exhaust [CrA°] 102
Valve timing [°CrA] intake closes 58, exhaust opens 82, exhaust closes 82, Lift in TDC intake [mm] 58
Lift in TDC [mm] Valve clearance exhaust [mm] 6,4, Opening duration exhaust [CrA°] 6,4
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25, Valve clearance intake [mm] 0,3
Optional accessories
- Camshaft gears 089900001
- Camshaft gears 089900002

**Required accessories, these items MUST be used with these camshafts, please Enquire for best prices :-

- Valve springs 022702113*
- Valves int. valve 022713053*, exh. valve 02271354
- Valve keys key 0894138L7*
- Valve spring retainers upper 022713055*
- Valve spring retainers lower 022713058*
- Cam followers tappet 022713805-2*
- Tappets 0227 13 805 necessary

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Note M3 single Vanos 3,0L Exhaust

284/108 - Exhaust (Peak timing intake/Peak timing exhaust)
Ref: 0284A1840-001

Stroke data [mm] Cam lift inlet -, Cam lift outlet 11.9, Valve lift inlet -, Valve lift outlet 11.9
Opening angle [° Kw] Opening angle inlet -, Opening angle outlet 284, intake spread -, exhaust spread 108
Timing [° Kw] Inlet opens -, Inlet closes -, Outlet opens 70, Outlet closes 34
Stroke in TDC [mm] Valve lift inlet in TDC -, Valve lift outlet in TDC 3.1
Valve clearance [mm] Valve clearance inlet -, Valve clearance outlet 0.25
Note M3 single Vanos 3,0L exhaust

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 2.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

284/122-80 - Intake (Opening duration/intake opens)
Ref: 0284E1840-0V1

Note M3 single Vanos 3,0L intake

Stroke data [mm] Cam lift inlet 11.9, Cam lift outlet -, Valve lift inlet 11.9, Valve lift outlet -
Opening angle [° Kw] Opening angle inlet 284, Opening angle outlet -, intake spread 122-80, exhaust spread -
Timing [° Kw] Inlet opens 20, Inlet closes 84, Outlet opens -, Outlet closes -
Stroke in TDC [mm] Valve lift inlet in TDC 1.3 to 6.7, Valve lift outlet in TDC -
Valve clearance [mm] Valve clearance inlet 0.25, Valve clearance outlet -
Connected camshaft camshaft 0284A1840-001

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 2.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Note M3 single Vanos 3,0L exhaust

296/108 - Exhaust (Peak timing intake/Peak timing exhaust)
Ref: 0284A1960-001
Stroke data [mm] Cam lift inlet -, Cam lift outlet 12.4, Valve lift inlet -, Valve lift outlet 12.4
Opening angle [° Kw] Opening angle inlet -, Opening angle outlet 296, intake spread -, exhaust spread 108
Timing [° Kw] Inlet opens -, Inlet closes -, Outlet opens 40, Outlet closes 76
Stroke in TDC [mm] Valve lift inlet in TDC -, Valve lift outlet in TDC 4
Valve clearance [mm] Valve clearance inlet -, Valve clearance outlet 0.25
Connected camshaft camshaft 0284E1960-0V1
Note M3 single Vanos 3,0L exhaust

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

296/122-80 - Intake (Opening duration/intake opens)
Ref: 0284E1960-0V1

Note M3 single Vanos 3,0L Intake

Stroke data [mm]
Cam lift inlet 12.4
Cam lift outlet -
Valve lift inlet 12.4
Valve lift outlet -
Opening angle [° Kw] Opening angle inlet 296, Opening angle outlet -, intake spread 80-122, exhaust spread -
Timing [° Kw] Inlet opens 26, Inlet closes 90, Outlet opens -, Outlet closes -
Stroke in TDC [mm] Valve lift inlet in TDC 2.15 to 7.5, Valve lift outlet in TDC -
Valve clearance [mm] Valve clearance inlet 0.25, Valve clearance outlet -
Connected camshaft camshaft 0284A1960-001

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 0207D1720-00

272/272/110 (Opening duration/Peak timing intake/Peak timing exhaust)
FOR BMW M88 AND S38 ENGINES

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 11,0, Cam lift exhaust [mm] 11,0, Valve lift intake [mm] 11,0, Valve lift exhaust [mm] 11,0
Opening Durations [°CrA] Opening duration [CrA°] 272, Peak timing intake [CrA°] 272, intake opens 110,
Peak timing exhaust [CrA°] 110
Valve timing [°CrA] intake closes 26, exhaust opens 66, exhaust closes 66, Lift in TDC intake [mm] 26
Lift in TDC [mm] Valve clearance exhaust [mm] 2,5, Opening duration exhaust [CrA°] 2,5
Valve clearance [mm] Lift in TDC exhaust [mm] 0,35, Valve clearance intake [mm] 0,35
Additional Information: Engine M88 ( - 1988)

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 0207D1800-00

280/280/110 (Opening duration/Peak timing intake/Peak timing exhaust)
FOR ALL BMW M88 AND S38 ENGINES

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 11,0, Cam lift exhaust [mm] 11,0, Valve lift intake [mm] 11,0, Valve lift exhaust [mm] 11,0
Opening Durations [°CrA] Opening duration [CrA°] 280, Peak timing intake [CrA°] 280, intake opens 110,
Peak timing exhaust [CrA°] 110
Valve timing [°CrA] intake closes 30, exhaust opens 70, exhaust closes 70, Lift in TDC intake [mm] 30
Lift in TDC [mm] Valve clearance exhaust [mm] 2,7, Opening duration exhaust [CrA°] 2,7
Valve clearance [mm] Lift in TDC exhaust [mm] 0,35, Valve clearance intake [mm] 0,35
Additional Information: Engine S 38 (1989 - )

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

*** This listing is for the 11.6 mm cam lift version camshafts, please see alternate listing for higher lift version.

PRICED AS SET OF TWO CAMSHAFTS, 288 DEGREE INLET 280 EXHAUST
E46 M3 CSL SPECIFICATION
-0415E1880-00 and 0415A1800-00

288/132-72 - Intake (Opening duration/intake opens)
0415E1880-00

Cam lift intake 11,6
Valve lift intake [mm] 12.5
Opening Durations [°CrA]
Opening duration [CrA°] 288
Peak timing intake [CrA°] -
intake opens 132-72
intake closes 12
exhaust opens 96
Valve clearance exhaust [mm] 0,77-8,26
Lift in TDC exhaust [mm] 0,25

280/130-85 - Exhaust (Peak timing intake/Peak timing exhaust)
Ref: 0415A1800-00

Cam lift intake 11,6
Cam lift exhaust [mm] -
Valve lift intake [mm] 12.5
Opening duration [CrA°] 280
Peak timing intake [CrA°] -
intake opens 132-72
intake closes 8-92
exhaust opens 68-22
Valve clearance exhaust [mm] 0,55-8,0
Lift in TDC exhaust [mm] 0,25

*** Optional accessories, please Enquire for best prices

- valve springs 041502095*
- Valve spring retainer retainer up 041513011*
- Valve spring retainer retainer low 041513012*
- cam follower rocker arm 041513800*

**NOTE: The camshaft followers MUST be renewed on the S54 engine anytime you remove / install camshafts. We recommend the Schrick DLC followers Here

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 10.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

*** This listing is for the HIGHER LIFT version camshafts, please see alternate listing for the lower 11.6 mm lift versions.

PRICED AS SET OF TWO CAMSHAFTS, 288 DEGREE INLET 280 EXHAUST HIGH LIFT VERSION
E46 M3 CSL SPECIFICATION
-0415E1880-01 and 0415A1800-01

288/132-72 - Intake (Opening duration/intake opens)
0415E1880-01

Cam lift intake 12,9 mm
Valve lift intake [mm] 14
Opening duration [CrA°] 288
Peak timing intake [CrA°] -
intake opens 132-72
Valve timing [°CrA]
intake closes 12
exhaust opens 96
Valve clearance exhaust [mm] 0,8-8,9
Lift in TDC exhaust [mm] 0,25

280/130-85 - Exhaust (Peak timing intake/Peak timing exhaust)
Ref: 0415A1800-01

Cam lift exhaust [mm] 12,58
Valve lift exhaust [mm] 14
Peak timing intake [CrA°] 280
Peak timing exhaust [CrA°] 130-85
Valve timing [°CrA]
exhaust closes 55-45
Lift in TDC intake [mm] 10-90
Opening duration exhaust [CrA°] 0,68-6,68
Valve clearance intake [mm] 0,25

**Required accessories, these items MUST be used with these camshafts, please Enquire for best prices

- valve springs 041502095*
- Valve spring retainer retainer up 041513011*
- Valve spring retainer retainer low 041513012*
- cam follower rocker arm 041513800*

**NOTE: The camshaft followers MUST be renewed on the S54 engine anytime you remove / install camshafts. We recommend the Schrick DLC followers Here

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 10.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshaft pair for N54 Turbo engine.
PRICED AS SET OF TWO CAMSHAFTS

264/128,2
Ref: 9038A1641-01
Exhaust camshaft hydr.
264/a28,2 - /6,54mm (11,00mm) / 0,21 - mm hydr.

268/125,6
Ref: 9038E1681-00
Intake camshaft Hydr.
268/125,6 - / 7,2mm (12,00mm) /0,15 - mm hydr.

PRICED AS SET OF TWO CAMSHAFTS

We recommend always replacing the cam followers when mounting a new camshaft.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Sold as a Pair.

This listing is for the 11.6 mm cam lift version, please see alternate listing for the higher lift versions.

304/132-72 - Intake (Opening duration/intake opens) and 296/130-85 Exhaust (Peak timing intake/Peak timing exhaust)
Ref: 0415E1040-00 and 0415A1960-00

304/132-72 - Intake :-
Stroke data [mm] Cam lift inlet 11.6, Cam lift outlet -, Valve lift inlet 12.5, Valve lift outlet -
Opening angle [° Kw] Opening angle inlet 304, Opening angle outlet -, intake spread 132-72,
exhaust spread -
Timing [° Kw] Inlet opens 20, Inlet closes 104, Outlet opens -, Outlet closes -
Stroke in TDC [mm] Valve lift inlet in TDC -, Valve lift outlet in TDC -
Valve clearance [mm] Valve clearance inlet 0.25, Valve clearance outlet -

296/130-85 - Exhaust :-
Stroke data [mm] Cam lift inlet -, Cam lift outlet 11.6, Valve lift inlet -, Valve lift outlet 12.5
Opening angle [° Kw] Opening angle inlet -, Opening angle outlet 296, intake spread -,
exhaust spread 130-85
Timing [° Kw] Inlet opens -, Inlet closes -, Outlet opens 63-53, Outlet closes 18-98
Stroke in TDC [mm] Valve lift inlet in TDC -, Valve lift outlet in TDC 1.35 to 6.6
Valve clearance [mm] Valve clearance inlet -, Valve clearance outlet 0.25

PRICED AS SET OF TWO CAMSHAFTS

**Required accessories, these items MUST be used with these camshafts, please Enquire for best prices
- valve springs 041502095*
- Valve spring retainer retainer up 041513011*
- Valve spring retainer retainer low 041513012*
- cam follower rocker arm 041513800*

**NOTE: The camshaft followers MUST be renewed on the S54 engine anytime you remove / install camshafts. We recommend the Schrick DLC followers Here

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 10.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

BMW S54 ENGINE

Sold as a Pair.

This listing is for the HIGH LIFT VERSION camshaft paitr, please see alternate listing for the lower lift versions.

304/104 - Intake (Opening duration/intake opens) and 296/104 Exhaust (Peak timing intake/Peak timing exhaust)
Ref: 0415E1040-01 and 0415A1960-01

304/104- Intake :-
Lift data [mm] : Cam lift intake 12,9
Valve lift intake [mm] 14
Opening duration [CrA°] 304
Peak timing intake [CrA°] - intake opens 104
Valve timing [°CrA] : intake closes 48 exhaust opens 76
Lift in TDC intake [mm] - 4.57
Lift in TDC [mm] & Valve clearance 0.25 mm
Opening duration exhaust [CrA°] -

296/104 - Exhaust :-
Cam lift exhaust [mm] 12,58
Valve lift exhaust [mm] 14
Peak timing intake [CrA°] 296
Peak timing exhaust [CrA°] 104
Valve timing [°CrA]
exhaust closes 44
Lift in TDC intake [mm] 72
Opening duration exhaust [CrA°] 4,57
Valve clearance intake [mm] 0,25

PRICED AS SET OF TWO CAMSHAFTS

**Required accessories, these items MUST be used with these camshafts, please Enquire for best prices
- valve springs 041502095*
- Valve spring retainer retainer up 041513011*
- Valve spring retainer retainer low 041513012*
- cam follower rocker arm 041513800*

**NOTE: The camshaft followers MUST be renewed on the S54 engine anytime you remove / install camshafts. We recommend the Schrick DLC followers Here

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 10.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 035301561-00

256/108 Intake /256/110 Exhaust
For BMW M43 engines

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Camshaft type: Camshaft for inlet and outlet
Duration °CRA Intake: 256
Duration °CRA Exhaust: 256
Intake Peak Timing: 108
Exhaust Peak Timing: 110
Cam Lift Inlet: 6.34
Cam Lift Exhaust: 6.34
Valve Lift Inlet: 11.1
Valve Lift Exhaust: 11.1
Valve Timing °CRA Intake open: 20
Valve Timing °CRA Intake close: 56
Valve Timing °CRA Exhaust open: 58
Valve Timing °CRA Exhaust close: 18
Lift at TDC Intake: 1.05
Lift at TDC Exhaust: 0.86
Valve clearance Intake: hydr.
Valve clearance Exhaust: hydr.

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

284/129-69 - EXHAUST (Opening duration/intake opens)
Ref: 0284A1840-0V2

Note intake S50B32 3,2L

Stroke data [mm] Cam lift inlet -, Cam lift outlet 11.9, Valve lift inlet -, Valve lift outlet 11.9
Opening angle [° Kw] Opening angle inlet -, Opening angle outlet 284, intake spread -,
exhaust spread 114-76
Timing [° Kw] Inlet opens -, Inlet closes -, Outlet opens 38, Outlet closes 66
Stroke in TDC [mm] Valve lift inlet in TDC -, Valve lift outlet in TDC 2.32 to 7.15
Valve clearance [mm] Valve clearance inlet -, Valve clearance outlet 0.25
Note VAnos system for intake - and exhaust 3,2L

In most cases it is advisable to change the cam followers when installing new camshafts.

*** Optional accessories, please Enquire us for prices

- valve springs 001302064
- valve springs 022002026
- Valve spring retainer 028413010
- Valve spring retainer 028413011
- cam follower 022713805-2

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 10.00 Kg



This image is generic/non-specific
Click to Enlarge

284/129-69 - Intake (Opening duration/intake opens)
Ref: 0284E1840-0V2

Note intake S50B32 3,2L

Stroke data [mm] Cam lift inlet 11.9, Cam lift outlet -, Valve lift inlet 11.9, Valve lift outlet -
Opening angle [° Kw] Opening angle inlet 284, Opening angle outlet -, intake spread 129-69, exhaust spread -
Timing [° Kw] Inlet opens 13, Inlet closes 91, Outlet opens -, Outlet closes -
Stroke in TDC [mm] Valve lift inlet in TDC 0.8 to 7.95, Valve lift outlet in TDC -
Valve clearance [mm] Valve clearance inlet 0.25, Valve clearance outlet -

*** Optional accessories, please Enquire for prices

- valve springs 001302064
- valve springs 022002026
- Valve spring retainer 028413010
- Valve spring retainer 028413011
- cam follower 022713805-2


In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 7.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 0284A1080-1V2

/308/104 (Peak timing exhaust)
BMW S50 B32 DUAL VANOS 3.2 L

** VANOS SYSTEM MUST BE REMOVED TO USE THESE CAMS !
Base circle diameter 32mm.

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm]
- Cam lift exhaust [mm] 13,0
- Valve lift exhaust [mm] 13.0
Opening Durations [°CrA] Opening duration [CrA°] - Peak timing exhaust [CrA°] 104
Valve timing [°CrA] exhaust opens -, exhaust closes 78, Lift in TDC intake [mm] 50
Lift in TDC [mm] Valve clearance exhaust [mm] -, Opening duration exhaust [CrA°] 4,5,
Valve clearance [mm] Lift in TDC exhaust [mm] 5

**Required accessories, these items MUST be used with these camshafts, please Enquire for best prices :-

- Valve springs 022702113*
- Cam followers tappet 022713805-2*
- Valve spring retainers upper ret. 028413012*
- Valve spring retainers lower ret. 028413013*
- Valve keys key 0894138L6*
- Valves valve 028413015* exhaust

Additional Information: Vanos system must be removed! Base circle diameter 32mm.

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 0284E1160-1V2
316/ /104 (Opening duration/intake opens)
For S50B32 dual vanos engine 3.2L

**VANOS SYSTEM MUST BE REMOVED !
Base circle diameter 32mm

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Lift data [mm] Cam lift intake 13,3, , Valve lift intake [mm] 13,3, Valve lift exhaust 13.3[mm] -
Opening Durations [°CrA] Opening duration [CrA°] 316, Peak timing intake [CrA°] -, intake opens 104, Peak timing exhaust [CrA°] -
Valve timing [°CrA] exhaust opens 54, exhaust closes 82
Valve Lift TDC [mm] 5,5mm
Valve clearance [mm] Lift in TDC exhaust [mm] 0,25

**Required accessories, these items MUST be used with these camshafts, please Enquire for best prices :-

- Valve springs 022702113*
- Cam followers tappet 022713805-2*
- Valve spring retainers upper ret. 028413012*
- Valve spring retainers lower ret. 028413013*
- Valve keys key 0894138L6*
- Valves valve 028413014* intake

Additional Information: Vanos system must be removed! Base circle diameter 32mm.

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

296/76-114 - Exhaust (Peak timing intake/Peak timing exhaust)
Ref: 0284A1960-0V2
S50B32 3.2 L

Stroke data [mm] Cam lift inlet -, Cam lift outlet 12.4, Valve lift inlet -, Valve lift outlet 12.4
Opening angle [° Kw] Opening angle inlet -, Opening angle outlet 296, intake spread -,
exhaust spread 76-114
Timing [° Kw] Inlet opens -, Inlet closes -, Outlet opens 82, Outlet closes 34
Stroke in TDC [mm] Valve lift inlet in TDC -, Valve lift outlet in TDC 3.2 to 7.94
Valve clearance [mm] Valve clearance inlet - Valve clearance outlet 0.25

*** Optional accessories, please Enquire for prices
- valve springs 001302064
- valve springs 022002026
- Valve spring retainer 028413010
- Valve spring retainer 028413011
- cam follower 022713805-2



In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 10.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

296/69-129 - Intake (Opening duration/intake opens)
Ref: 0284E1960-0V2

Stroke data [mm] Cam lift inlet 12.4, Cam lift outlet -, Valve lift inlet 12.4, Valve lift outlet -
Opening angle [° Kw] Opening angle inlet 296, Opening angle outlet -, intake spread 69-129, exhaust spread -
Timing [° Kw] Inlet opens 79, Inlet closes 37, Outlet opens -, Outlet closes -
Stroke in TDC [mm] Valve lift inlet in TDC 1.35 to 8.86, Valve lift outlet in TDC -,
Valve clearance [mm] Valve clearance inlet 0.25, Valve clearance outlet

Optional accessories, please Enquire for best prices ,
- valve springs 001302064
- valve springs 022002026
- Valve spring retainer 028413010
- Valve spring retainer 028413011
- cam follower 022713805-2

Note Vanos system for intake - and exhaust 3,2L

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 10.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from the company Schrick stand out by their high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

BMW S54 ENGINE

Pair of camshafts, 280/272 degree

280/132-72 - Intake (Opening duration/intake opens)
Ref: 0415E1800-00 and 0415A1720-00

Stroke data [mm] Cam lift inlet 11.6, Cam lift outlet -, Valve lift inlet 12.5, Valve lift outlet -
Opening angle [° Kw] Opening angle inlet 280, Opening angle outlet -, intake spread 132-72, exhaust spread -
Timing [° Kw] Inlet opens 8-92, Inlet closes 68-22, Outlet opens -, Outlet closes -
Stroke in TDC [mm] Valve lift inlet in TDC 0.55 to 8.0, Valve lift outlet in TDC -
Valve clearance [mm] Valve clearance inlet 0.25, Valve clearance outlet -

272/128-83 - Exhaust (Peak timing intake/Peak timing exhaust)
Ref: 0415A1720-00
Stroke data [mm] Cam lift inlet -, Cam lift outlet 11.6, Valve lift inlet -, Valve lift outlet 12.5
Opening angle [° Kw] Opening angle inlet -, Opening angle outlet 272, intake spread -,
exhaust spread 128-83
Timing [° Kw] Inlet opens -, Inlet closes -, Outlet opens 53-37, Outlet closes 8-82
Stroke in TDC [mm] Valve lift inlet in TDC 0.55 to 6.15, Valve lift outlet in TDC -
Valve clearance [mm] Valve clearance inlet -, Valve clearance outlet 0.25

**NOTE: The camshaft followers MUST be renewed on the S54 engine anytime you remove / install camshafts. We recommend the Schrick DLC followers Here

PRICED AS SET OF TWO CAMSHAFTS

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 10.00 Kg



Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

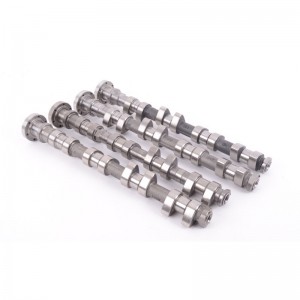

268/134-74 - Intake (Opening duration/Intake Opens)
Ref: 0409E1681-L0, 0409E1681-RO

For the BMW S62 Engine
PRICED AS FULL SET OF 4 CAMSHAFTS

Stroke data [mm] Cam lift inlet 11.3, Cam lift outlet -, Valve lift inlet 11.3, Valve lift outlet -
Opening angle [° Kw] Opening angle inlet 268, Opening angle outlet -, intake spread 134-74, exhaust spread -
Timing [° Kw] Inlet opens 0, Inlet closes 88, Outlet opens -, Outlet closes -
Stroke in TDC [mm] Valve lift inlet in TDC 0.05 to 6.4, Valve lift outlet in TDC -
Valve clearance [mm] Valve clearance inlet hydr., Valve clearance outlet -
Optional accessories
- NW wheels & more 089900001
- NW wheels & more 089900002
Necessary accessories
- camshaft 0409E1681-R0*
- camshaft 0409A1681-L0*
- camshaft 0409A1681-R0*
Connected camshaft
- camshaft 0409E1681-R0
- camshaft 0409A1681-L0
- camshaft 0409A1681-R0
Note Check clearance between cam lobes and cyl. head.

268/136-76 - Exhaust (Peak timing intake/Peak timing exhaust)
Ref: 0409A1681-L0, 0409A1681-R0

Stroke data [mm] Cam lift inlet -, Cam lift outlet 11.3, Valve lift inlet -, Valve lift outlet 11.3
Opening angle [° Kw] Opening angle inlet - Opening angle outlet 268 intake spread -,
exhaust spread 136-76
Timing [° Kw] Inlet opens -, Inlet closes -, Outlet opens 58, Outlet closes 38
Stroke in TDC [mm] Valve lift inlet in TDC -, Valve lift outlet in TDC 0.05 to 6.4
Valve clearance [mm] Valve clearance inlet -, Valve clearance outlet hydr.
Optional accessories
- NW wheels & more 089900001
- NW wheels & more 089900002
Necessary accessories
- camshaft 0409E1681-L0*
- camshaft 0409E1681-R0*
- camshaft 0409A1681-R0*
Note Check clearance between cam lobes and cyl. head
Accessory articles which are marked with an asterisk (*) must be used with this specification camshaft. Those with no (*) are recommended by Schrick but are not mandatory.

PRICED AS SET OF FOUR CAMSHAFTS

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 15.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

FOR THE BMW S65 V8 ENGINE, 284 DEGREE INLET AND EXHAUST

PRICED AS SET OF FOUR CAMSHAFTS

284/132/74 Intake (Opening duration/intake opens)
Ref: 0485E1841-L0, 0485E1841-R0

Stroke data [mm] Cam lift inlet 12,00, Cam lift outlet -, Valve lift inlet 12,00, Valve lift outlet -
Opening angle [° Kw] Opening angle inlet 284, Opening angle outlet -, intake spread 132-74, exhaust spread -
Timing [° Kw] Inlet opens 12-68, Inlet closes 90-36, Outlet opens -, Outlet closes -
Stroke in TDC [mm] Valve lift inlet in TDC 0.15 to 6.72, Valve lift outlet in TDC -
Valve clearance [mm] Valve clearance inlet hydr., Valve clearance outlet -

284/134/86 Exhaust (Peak timing intake/Peak timing exhaust)
Ref: 0485A1841-L0, 0485A1841-R0

Stroke data [mm] Cam lift inlet -, Cam lift outlet 12,00, Valve lift inlet -, Valve lift outlet 12,00
Opening angle [° Kw] Opening angle inlet -, Opening angle outlet 284, intake spread -,
exhaust spread 134-86
Timing [° Kw] Inlet opens -, Inlet closes -, Outlet opens 96-48, Outlet closes 8-56
Stroke in TDC [mm] Valve lift inlet in TDC -, Valve lift outlet in TDC 0.17 to 5.05
Valve clearance [mm] Valve clearance inlet -, Valve clearance outlet hydr.

*** Optional accessories, please Enquire for best prices
- valve springs 048502098
- valves 048513011
- valve keys 0894138L5
- NW wheels & more 089900001
- NW wheels & more 089900002
- Valve spring retainer 048513012

PRICED AS SET OF FOUR CAMSHAFTS

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 15.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

FOR THE BMW S65 V8 ENGINE, 296 DEGREE INLET AND EXHAUST

PRICED AS SET OF FOUR CAMSHAFTS

292 / /132/74 Intake (Opening duration/intake opens)
Ref: 0485E1921-L0 & 0485E1921-R0

Cam lift intake 12,20
Valve lift intake [mm] 12,20
Opening Durations [°CrA]
Opening duration [CrA°] 292
Peak timing intake [CrA°] -
intake opens 132-74
Peak timing exhaust [CrA°] -
Valve timing [°CrA]
intake closes 14-72
exhaust opens 98-40
Valve clearance exhaust [mm] 0,4-7,37

292 / 134-86 Exhaust (Opening duration/intake opens)
0485A1921-L0 & 0485A1921-RO

Cam lift exhaust [mm] 12,20
Valve lift exhaust [mm] 12,20
Peak timing intake [CrA°] 292
Peak timing exhaust [CrA°] 134-86
exhaust closes 100-52
Lift in TDC intake [mm] 12-60
Opening duration exhaust [CrA°] 0,35-5,75

** Required Accesssories, these items ( or equivalent) MUST be installed when using these camshafts, please Enquire for prices

- valve springs 048502098
- valves 048513011
- valve keys 0894138L5
- Valve spring retainer 048513012

Optional Accessories, please Enquire for best
- NW wheels & more 089900001
- NW wheels & more 089900002

PRICED AS SET OF FOUR CAMSHAFTS

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 15.00 Kg



Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

292/145-79 - Intake (Opening duration/intake opens)
Ref: 0473E1921-L0, 0473E1921-R0
Stroke data [mm] Cam lift inlet 12.2, Cam lift outlet -, Valve lift inlet 12.2, Valve lift outlet -
Opening angle [° Kw] Opening angle inlet 292, Opening angle outlet -, intake spread 145-79, exhaust spread -
Timing [° Kw] Inlet opens 1-67, Inlet closes 111-45, Outlet opens -, Outlet closes -
Stroke in TDC [mm] Valve lift inlet in TDC 0.04 to 6.55, Valve lift outlet in TDC -
Valve clearance [mm] Valve clearance inlet hydr., Valve clearance outlet -
Connected camshaft
- camshaft 0473E1921-R0
- camshaft 0473A1801-L0
- camshaft 0473A1801-R0

280/130-93 - Exhaust (Peak timing intake/Peak timing exhaust)
Ref: 0473A1801-L0, 0473A1801-R0
Stroke data [mm] Cam lift inlet -, Cam lift outlet 12.2, Valve lift inlet -, Valve lift outlet 12.2
Opening angle [° Kw] Opening angle inlet -, Opening angle outlet 280, intake spread -,
exhaust spread 130-93
Timing [° Kw] Inlet opens -, Inlet closes -, Outlet opens 90-10, Outlet closes 63-47
Stroke in TDC [mm] Valve lift inlet in TDC -, Valve lift outlet in TDC 0.2 to 3.8
Valve clearance [mm] Valve clearance inlet -, Valve clearance outlet hydr.
Connected camshaft
- camshaft 0473E1921-L0
- amshaft 0473E1921-R0
- camshaft 0473A1801-R0
Note Check for clearance of cam lobes to cyl. head and between valves and pistons.

PRICED AS SET OF FOUR CAMSHAFTS

In most cases it is advisable to change the cam followers when installing new camshafts

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 15.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.


FULL SET OF FOUR CAMSHAFTS FOR BMW S85 V10 ENGINE, 296 / 284 DEGREE

296//145-79
Ref: 0473E1961-L0 and 0473 E1 961-R0

Camshaft type: Inlet Camshaft
Duration °CRA Intake: 296
Intake Peak Timing: 145-79
Cam Lift Inlet: 12.2
Valve Timing °CRA Intake open: 3
Valve Timing °CRA Intake close: 113
Valve Timing °CRA Exhaust open: 69
Valve Timing °CRA Exhaust close: 47
Lift at TDC Intake: 0,05-6,75
Valve clearance Exhaust: hydr.

/284/130-93
Ref: 0473A1841-R0 and 0473A1841-LO

Camshaft type: Outlet Camshaft
Duration °CRA Intake: 284
Intake Peak Timing: 130-93
Cam Lift Inlet: 12.2
Valve Timing °CRA Intake open: 92
Valve Timing °CRA Intake close: 12
Valve Timing °CRA Exhaust open: 55
Valve Timing °CRA Exhaust close: 47
Lift at TDC Exhaust: 0,25-4,05
Valve clearance Exhaust: hydr.

PRICED AS SET OF FOUR CAMSHAFTS

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 15.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 002201840-01

284/280/110 (Opening duration/Peak timing intake/Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Stroke data [mm] Cam lift inlet 8.7, Cam lift outlet 8.6, Valve lift inlet 10.9, Valve lift outlet 10.8 Opening angle [° Kw] Opening angle inlet 284, Opening angle outlet 280, intake spread 110, exhaust spread 110
Timing [° Kw] Inlet opens 32, Inlet closes 72, Outlet opens 70, Outlet closes 30
Stroke in TDC [mm] Valve lift inlet in TDC 1.9, Valve lift outlet in TDC 1.7
Valve clearance [mm] Valve clearance inlet 0.25, Valve clearance outlet 0.25
Optional accessories Valve springs 000202090
Note Motronik 1 (-9/83), without fuel pump drive)

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

For all M52 single vanos engines 252 / 248 intake / exhaust degrees

PRICED AS SET OF TWO CAMSHAFTS

244/106 -Exhaust (Opening duration/intake opens)
Ref: 0261A1441-00

Cam lift exhaust [mm] 9,5
Valve lift intake [mm] -alve lift exhaust [mm] 9,5
Peak timing intake [CrA°] 244
Peak timing exhaust [CrA°] 106
Valve timing [°CrA] : exhaust closes 48
Lift in TDC intake [mm] 16
Opening duration exhaust [CrA°] 0,8

252/ / 116 -91 Intake
ref: 0261E1521-V0

Cam lift intake 10,2 mm
Valve lift intake [mm] 10,2
Valve lift exhaust [mm] -
Opening Durations [°CrA]
Opening duration [CrA°] 252
Peak timing intake [CrA°] -
intake opens 116-91
ntake closes 10 degrees CRA
exhaust opens 62 degrees CRA
Valve clearance exhaust [mm] 0,3-3,2

PRICED AS SET OF TWO CAMSHAFTS

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 10.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 0261A1561-02

FOR BMW M52 ENGINES, 256 DEGREE EXHAUST
256/108/ (Peak timing exhaust)

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Cam Lift (Valve Lift) I/E [mm] 10.6

Valve Lift at TDC I/E [mm] 1.23

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 0261E1641 -V2

264/116-91 (Peak timing intake)
For the BMW M52 engine.

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Cam Lift (Valve Lift) I/E [mm] 11.2

Valve Lift at TDC I/E [mm] 0.70-3.73

*** IT IS HIGHLY ADVISABLE TO CHANGE VALVE SPRINGS WITH THESE SPECIFICATION CAMSHAFTS please Enquire for best prices

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 0261A1701-00

270/118.5 (Peak timing exhaust)
BMW M52 ENGINE
, 270 DEGREE EXHAUST
Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Cam Lift (Valve Lift) I/E [mm] 10.8

Valve Lift at TDC I/E [mm] 0.7

*** VALVE TO PISTON CLEARANCE MUST BE CHECKED, NEW OR MACHINED PISTONS LIKELY REQUIRED

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Ref: 0261E1761-V03

276/1125 (Peak timing exhaust)
BMW M52 ENGINE, 276 DEGREE INLET

*** VALVE TO PISTON CLEARANCE MUST BE CHECKED, NEW OR MACHINED PISTONS LIKELY REQUIRED

Camshafts from Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

Cam Lift (Valve Lift) I/E [mm] 11.2

Valve Lift at TDC I/E [mm] 1.9

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 5.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

For the M54 and M52TU DUAL VANOS engines, 248 intake and 248 Exhaust degrees

PRICED AS SET OF TWO CAMSHAFTS

0261E1481-DV0 248 / 120 -80 iNTAKE

Cam lift intake 10,0
Valve lift intake [mm] 10,0
Opening Durations [°CrA]
Opening duration [CrA°] 248
Peak timing intake [CrA°] -
intake opens 120-80
Valve timing [°CrA]
intake closes 4
exhaust opens 64
exhaust closes -
Valve clearance exhaust [mm] 0,1-4,4

0261A1481-DV0 248 /112-87 Exhaust

Cam lift exhaust [mm] 10,0
Valve lift intake [mm] -
Valve lift exhaust [mm] 10,0
Peak timing intake [CrA°] 248
Peak timing exhaust [CrA°] 114-85
Valve timing [°CrA]
exhaust closes 31
Lift in TDC intake [mm] 37
Opening duration exhaust [CrA°] 0,6-3,6

PRICED AS SET OF TWO CAMSHAFTS

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 10.00 Kg



Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

PRICED AS SET OF TWO CAMSHAFTS

For BMW M54 and M5TU dual vanos engine, 264 intake and 248 exhaust degrees

264/126-86 - Intake (Opening duration/intake opens)
Ref: 0261E1641-DV0
Stroke data [mm]:
Cam lift inlet 10.5
Cam lift outlet -
Valve lift inlet 10.5
Valve lift outlet -
Opening angle [° Kw] Opening angle inlet 264, Opening angle outlet -, intake spread 126-86, exhaust spread -
Timing [° Kw] Inlet opens 6, Inlet closes 78, Outlet opens -, Outlet closes -
Stroke in TDC [mm] Valve lift inlet in TDC 0.15 to 4.05, Valve lift outlet in TDC -
Valve clearance [mm] Valve clearance inlet hydr., Valve clearance outlet -
Connected camshaft camshaft 0261A1481-DV0

248/114-85 - Exhaust (Peak timing intake/Peak timing exhaust)
Ref: 0261A1481-DV0
Stroke data [mm] Cam lift inlet -, Cam lift outlet 10.0, Valve lift inlet -, Valve lift outlet 10.0
Opening angle [° Kw] Opening angle inlet -, Opening angle outlet 248, intake spread -,
exhaust spread 114-85
Timing [° Kw] Inlet opens -, Inlet closes -, Outlet opens 31, Outlet closes 37
Stroke in TDC [mm] Valve lift inlet in TDC -, Valve lift outlet in TDC 0.6 to 3.6
Valve clearance [mm] Valve clearance inlet -, Valve clearance outlet hydr.
Note with TÜV certificate for 3 / Z3 / 5, M52TU double Vanos

PRICED AS SET OF TWO CAMSHAFTS

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 10.00 Kg



This image is generic/non-specific
Click to Enlarge

Camshafts from the company Schrick stand out by its high quality and performance. With a Schrick camshaft, the power and torque of your engine will be optimised.

For the M54 and M52TU DUAL VANOS engines, 272 intake and 256 Exhaust degrees

PRICED AS SET OF TWO CAMSHAFTS

VALVE SPRING LENGTH AND VALVE TO PISTON CLEARANCE TO BE CHECKED DURING INSTALLATION

272/126-86 - Intake (Opening duration/intake opens)
Ref: 0261E1721-DV0
Stroke data [mm] Cam lift inlet 10.9, Cam lift outlet -, Valve lift inlet 10.9, Valve lift outlet -
Opening angle [° Kw] Opening angle inlet 272, Opening angle outlet -, intake spread 126-86,
exhaust spread -
Timing [° Kw] Inlet opens 10, Inlet closes 82, Outlet opens -, Outlet closes -
Stroke in TDC [mm] Valve lift inlet in TDC 0.35 to 4.85, Valve lift outlet in TDC -
Valve clearance [mm] Valve clearance inlet hydr., Valve clearance outlet -
Connected camshaft camshaft 0261A1561-DV0
Note Check valve spring length and valve to piston clearance.

256/114-89 - Exhaust
Ref: 0261A1561-DV0 (Peak timing intake/Peak timing exhaust)
Stroke data [mm] Cam lift inlet -, Cam lift outlet 10.4, Valve lift inlet -, Valve lift outlet 10.4
Opening angle [° Kw] Opening angle inlet -, Opening angle outlet 256, intake spread -,
exhaust spread 114-89
Timing [° Kw] Inlet opens -, Inlet closes -, Outlet opens 39, Outlet closes 37
Stroke in TDC [mm] Valve lift inlet in TDC -, Valve lift outlet in TDC 0.65 to 4.4
Valve clearance [mm] Valve clearance inlet -, Valve clearance outlet hydr.
Note Check valve spring length and valve to piston clearance.

PRICED AS SET OF TWO CAMSHAFTS

In most cases it is advisable to change the cam followers when installing new camshafts.

PLEASE NOTE : Prices can vary according to Global currency exchange rates, so please contact us if you see same item cheaper, we will beat any other quote !

Estimated Variant Shipping Weight inc Packaging: 10.00 Kg
